    How to do it right, 2x M1?

    I'm starting my first from the ground up Garand assembly after tinkering with nearly correcting a 42 SA. I have wanted to assemble an M1icon for years, so I'm not particularly concerned with paying more for parts than the complete rifle. I was originally starting with a 40 SA stripped receiver, 7th rd fixed, and had planned on using the take off parts from the 42 to make an M1D clone with a new Criterion 308 barrel and cast repro block. At some point I developed a conscience at the thought of using an early receiver for a shooter project with questionable scope mounting. I bought a 2nd receiver, a 44 SA, to make the heart of the project. I also won an auction for a poor bore genuine M1D 555 barrel that I do not have in my hands yet.

    I was planning on sending both receivers to Shuff's soon to be reparkerized and barrels installed. The 40 appears to have danish park, and the 44 has a lighter park. Both are reapplied as both have park over pitting. The 44 is 281xxxx, which may put it at the cut off for manganese vs zinc.
    Am I safe to assume that:
    1. Redoing the park won't hurt value?
    2. Shuff's manganese park is darker than the danish park?
    3. Both rifles could have manganese park?

    I also want opinions on the barrels. When it comes down to it, I want to do what's right for these receivers, and may change my plans accordingly.
    My revised plan may be to:

    Install the 308 barrel on the 40, with no M1D block. Assemble as a complete rifle with as many SA-2 parts as I can find, and wait for Schuster fake gas trap block. The end result will be a shooter that looks more like a gas trap.

    Install the real M1D barrel on the 44. The seller was very insistent that the bore was questionable, and my result may not be particularly accurate. I could also remove the USGI block, and install on another 308 or 30-06 Criterion barrel, but I don't want to wreck a real 555 D barrel. I could also risk the fake block, but it seems those blocks combined with fake mounts do not zero. For immediate cost savings, I won't install any scope, but plan on finding a real mount.

    What is the best thing to do with these receivers, and what would you do? Is there a better path that I haven't explored?
    Last edited by BVZ24; 05-08-2024 at 06:10 PM.

  2. # ADS
    Friends and Sponsors
    Join Date
    October 2006
    Location
    Milsurps.Com
    Posts
    All Threads
    A Collector's View - The SMLE Short Magazine Lee Enfield 1903-1989. It is 300 8.5x11 inch pages with 1,000+ photo’s, most in color, and each book is serial-numbered.  Covering the SMLE from 1903 to the end of production in India in 1989 it looks at how each model differs and manufacturer differences from a collecting point of view along with the major accessories that could be attached to the rifle. For the record this is not a moneymaker, I hope just to break even, eventually, at $80/book plus shipping.  In the USA shipping is $5.00 for media mail.  I will accept PayPal, Zelle, MO and good old checks (and cash if you want to stop by for a tour!).  CLICK BANNER to send me a PM for International pricing and shipping. Manufacturer of various vintage rifle scopes for the 1903 such as our M73G4 (reproduction of the Weaver 330C) and Malcolm 8X Gen II (Unertl reproduction). Several of our scopes are used in the CMP Vintage Sniper competition on top of 1903 rifles. Brian Dick ... BDL Ltd. - Specializing in British and Commonwealth weapons Specializing in premium ammunition and reloading components. Your source for the finest in High Power Competition Gear. Here at T-bones Shipwrighting we specialise in vintage service rifle: re-barrelling, bedding, repairs, modifications and accurizing. We also provide importation services for firearms, parts and weapons, for both private or commercial businesses.


  3. #2
    Contributing Member Mark in Rochester's Avatar
    Join Date
    Mar 2009
    Last On
    Yesterday @ 08:59 PM
    Location
    Rochester, New York
    Posts
    6,712
    Real Name
    Mark in Rochester
    Local Date
    05-24-2024
    Local Time
    05:10 AM
    Repark will not hurt value

    do the park yourself - Parkerizing At Home - DIY Gunsmithing

    what is a Schuster fake gas trap block - do you mean an adjustable gas plug if it is the plug it will in no way look like a gas trap rifle



    He is no fool who gives what he cannot keep to gain that which he cannot lose
    There are no great men, only great challenges that ordinary men are forced by circumstances to meet.

  4. Avoid Ads - Become a Contributing Member - Click HERE
  5. #3
    Legacy Member BVZ24's Avatar
    Join Date
    Oct 2021
    Last On
    Today @ 12:37 AM
    Location
    WI
    Posts
    181
    Local Date
    05-24-2024
    Local Time
    04:10 AM
    Thread Starter

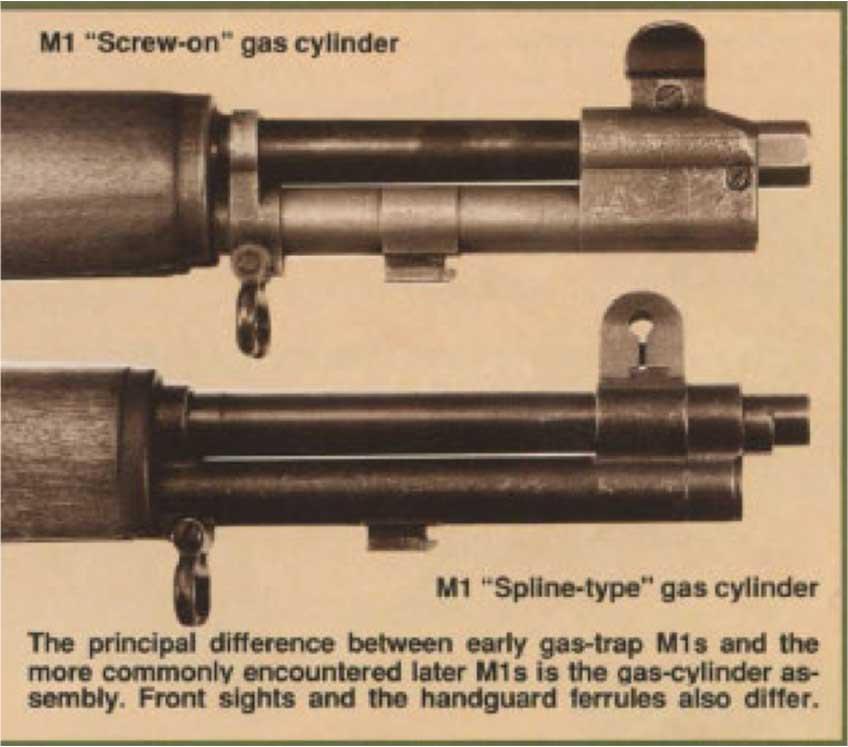

    This is what I had in mind. Not sure how frequently they do runs of them. M1 Garand Gas Trap Conversion - SCHUSTER MFG INC

  6. Thank You to BVZ24 For This Useful Post:


  7. #4
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Yesterday @ 11:52 PM
    Location
    Victoria BC
    Posts
    30,014
    Real Name
    Jim
    Local Date
    05-24-2024
    Local Time
    02:10 AM
    Quote Originally Posted by BVZ24 View Post
    This is what I had in mind
    That would have been neat to have when I was offered SA 153 and SA 154...
    Attached Thumbnails Click image for larger version

Name:	3 Syxx's M1.jpg‎
Views:	44
Size:	74.9 KB
ID:	136116   Click image for larger version

Name:	4 Kyle's M1.jpg‎
Views:	42
Size:	25.7 KB
ID:	136117
    Regards, Jim

  8. #5
    Legacy Member BVZ24's Avatar
    Join Date
    Oct 2021
    Last On
    Today @ 12:37 AM
    Location
    WI
    Posts
    181
    Local Date
    05-24-2024
    Local Time
    04:10 AM
    Thread Starter
    It seems like a good concept, installs on an unmodified port barrel, looks close enough for shooter grade.

    153+154? The thought of even seeing consecutive rifles that low is amazing. Ever get them in the same place?

    The M1D barrel arrived and is definitely toast. The muzzle swallows a bullet up to the case neck with room to spare. The bore reminds me of a Mosin. More or less knew I was getting it for the block, still don't want to remove it though.

  9. #6
    Advisory Panel browningautorifle's Avatar
    Join Date
    Jul 2008
    Last On
    Yesterday @ 11:52 PM
    Location
    Victoria BC
    Posts
    30,014
    Real Name
    Jim
    Local Date
    05-24-2024
    Local Time
    02:10 AM
    Quote Originally Posted by BVZ24 View Post
    Ever get them in the same place?
    I knew exactly where they were but even though one was affordable, the other was unworldly. Here in Canadaicon you can't charge the same prices for M1s and mixmasters are just that. I didn't even bother.
    Regards, Jim

  10. #7
    Contributing Member Mark in Rochester's Avatar
    Join Date
    Mar 2009
    Last On
    Yesterday @ 08:59 PM
    Location
    Rochester, New York
    Posts
    6,712
    Real Name
    Mark in Rochester
    Local Date
    05-24-2024
    Local Time
    05:10 AM




    He is no fool who gives what he cannot keep to gain that which he cannot lose
    There are no great men, only great challenges that ordinary men are forced by circumstances to meet.
